Florida Boatlifts



Prime Lift 11000


Standard Package:

  • 2- 6"x12' Aluminum I-Beam tops w/ loaded drive pipe, piling attachment brackets, and motor mount plates
  • 2- 8"x12'6" Bottom Cradle Beams w/ extrusions and shives  for 2-part pick up
  • 2- 5/16"x31' Stainless Steel Cables
  • 2- 2"x8"x12' Wood Bunks (optional upgrade to Aluminum Bunks)
  • 2- Gear Plates w/ wired motors (optional upgrade to Gear Box)
  • 2- Motor covers
  • 2- Pulley guards
  • 4- 3"x6' Weight pipe @ 45LB each
  • 4- 2 1/2"x6'8" PVC pipe
  • 8- Chock Brackets (changes to Aluminum Bunk chocks w/ upgrade to aluminum bunks)
  • 4- Guide Stanchions
  • Standard packages include bunk hardware, chock bracket hardware, guide stanchion hardware, and motor cover hardware


Prime Lift 13000


Standard Package:

  • 2- 6H"x12' Aluminum I-beam tops w/ loaded drive pipe, piling attachment brackets, and motor mount plates
  • 2- 8H"x12'6" Bottom Cradle Beams w/ extrusions and shives for 2-part pick up
  • 2- 5/16"x31' Stainless Steel Cables
    2- 2"x8"x12' Wood Bunks (optional upgrade to Aluminum Bunks)
    2- Gear Plates w/ wired motors (optional upgrade to Gear Box)
    2- 1 HP motors wired w/ switch and GFI
    2- Motor covers
    2- Pulley guards
    4- 3"x6' Weight pipe @ 45LB each
    4- 2 1/2"x6'8" PVC pipe
    8- Chock Brackets (changes to Aluminum Bunk chocks w/ upgrade to aluminum bunks)
    4- Guide Stanchions
    Standard packages include bunk hardware, chock bracket hardware, guide stanchion hardware, and motor cover hardware

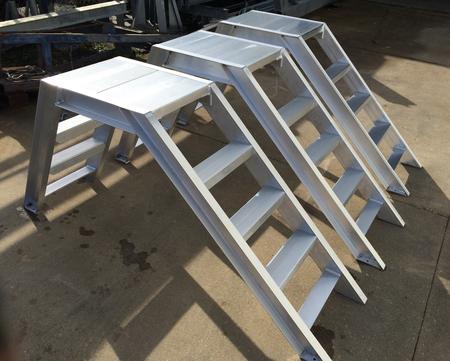

All of our Prime Lifts can be upgraded to a boat house lift with a purchase of our Prime Lift boat house brackets (see parts and upgrades page).  Along with the accessories listed above, all of our lifts can be upgraded to include stairs as seen in the picture to the left.  We can also upgrade your cradle beams to V-cradles with angled guide stanchions or dog-legged cradles if you want, all you have to do is ask.  We can also upgrade your lift to an EBD or direct drive lift (comes with greased gear box and a drive shave instead of gear plate).  All the parts listed and their sizes are standard, but we can customize them to fit whatever you may need.






Prime Lift 7000


Standard Package:

  • 12'5" Aluminum I-beam tops w/ loaded drive pipe. piling attachment brackets, and motor mount plates
  • 2- 6"x11' Bottom Cradle Beams w/ endplates
  • 2- 5/16"x17' Stainless Steel Cables
  • 2- 2"x8"x12' Wood Bunks (optional upgrade to Aluminum Bunks)
  • 2- Gear Plate w/ wired motors (optional upgrade to Gear Box)
  • 2- Motor covers
  • 2- Pulley guards
  • 4- 3"x6' Weight pipe @ 45LB each
  • 4- 2 1/2"x6'8" PVC pipe
  • 8- Chock Brackets (changes to Aluminum Bunk chocks w/ upgrade to aluminum bunks)
  • 4- Guide Stanchions
  • Standard packages include bunk hardware, chock bracket hardware, guide stanchion hardware, and motor cover hardware


All our Prime Lifts can be ordered with a walkboard (on right), stern platform (on left), and upgraded to aluminum bunks (in middle)




PRIME LIFT 4000 LBS


Standard Package:

  • 2- 12'4" Aluminum I-Beam tops w/ loaded drive pipe, piling attachment brackets, and motor mount plates
  • 2- 5"x11' Bottom Cradle Beams w/ endplates
  • 2- 1/4"x17' Stainless Steel Cables
  • 2- 2"x8"x12' Wood Bunks (optional upgrade to Aluminum Bunks)
  • 2- Gear Plate w/ wired motors (optional upgrade to Gear Box)
  • 2- Motor covers
  • 2- Pulley guards
  • 4- 3"x6' Weight pipe @ 45LB each
  • 4- 2 1/2"x6'8" PVC pipe
  • 8- Chock Brackets (changes to Aluminum Bunk chocks w/ upgrade to aluminum bunks)
  • 4- Guide Stanchions
  • Standard packages include bunk hardware, chock bracket hardware, guide stanchion hardware, and motor cover hardware



Florida Boatlift's Prime Lifts

Our top of the line lifts are an excellent choice for any of your boat lifting needs.  Our lifts are made from high grade T6 aluminum and are sturdy enough to withstand both the environment and time!  These lifts are available in several sizes and come with the standard hardware listed below.  If you need special sizes we can do that too! Call us to get yours today!!!!
